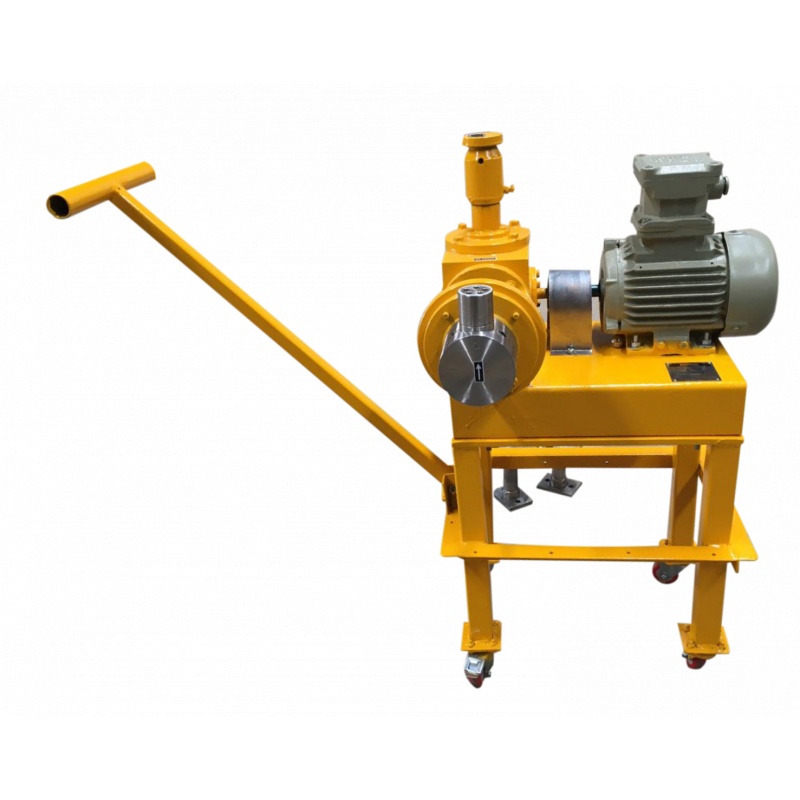

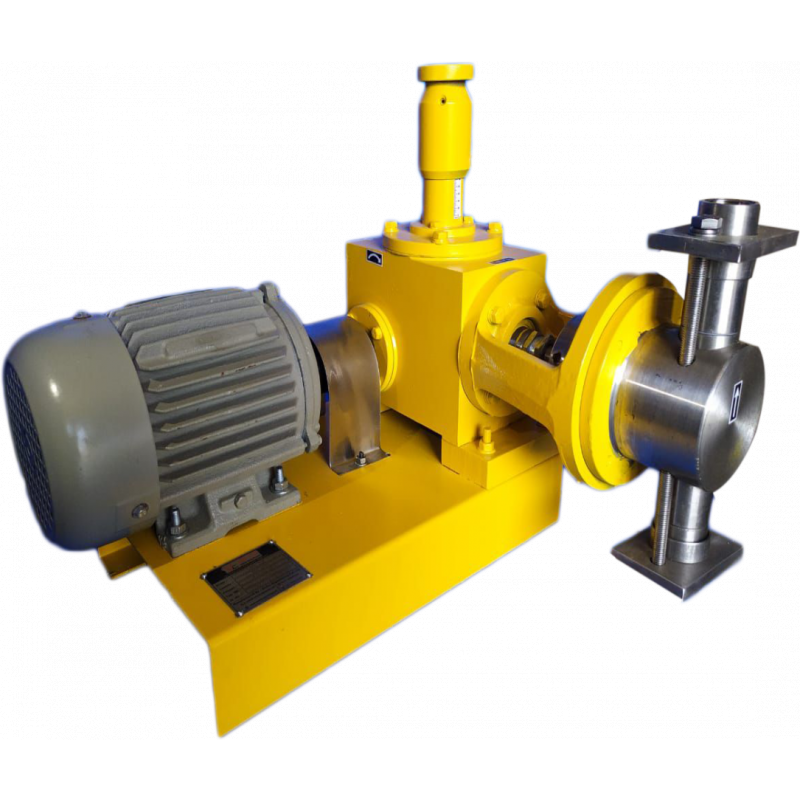

Type : Plunger Metering Pump
Flow Rate : Flow rate - 0 to 7000 LPH, Higher capacity can be achieved by multiplexing head.
Pressure Range : Stainless steel head standard pressure up to 300 kg/cm2.Special head up to 1000kg/cm2.
Features :
• Heavy duty construction designed for several industrial environment.
• High volumetric efficiency.
• High metering accuracy.
• Automatic capacity control via pneumatic or electric signal on demand or through UFD.
• Low investment cost.
• Internal worm reduction gear.
• Oil bath lubrication for long life.
• Micrometric stroke adjustment while pump running or stopped.
• It requires low NPSH.
• Steady state metering accuracy (+ - 2%) of pump output.
• Simple & multiplex arrangement of pumps.
Technical specification:
No Pump Model Capacity(L.P.H.) Max Pressure
1. VPL - O1 0 to 152 80
2. VPL - O2 0 to 761 99
3. VPL - O3 3 to 3000 230
4. VPL - O4 0 to 7000 400
