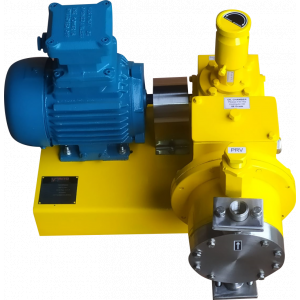

Type : Hydraulic Diaphragm Type Metering Pump.
Flow Rate : 0 to 7,000 litres per hour. Higher capacity can be achieved by multiplexing head.
Pressure Range : Stainless steel head standard pressure up to 300 kg/cm2. Special head up to 1000kg/cm2.
Features:
• Leak free design.
• All moving parts including plunger is running in oil.
• Diaphragm rupture detection system available.
• High metering accuracy.
• In built pressure relief valve in hydraulic circuit.
• Diaphragm life more than 20000 working hours.

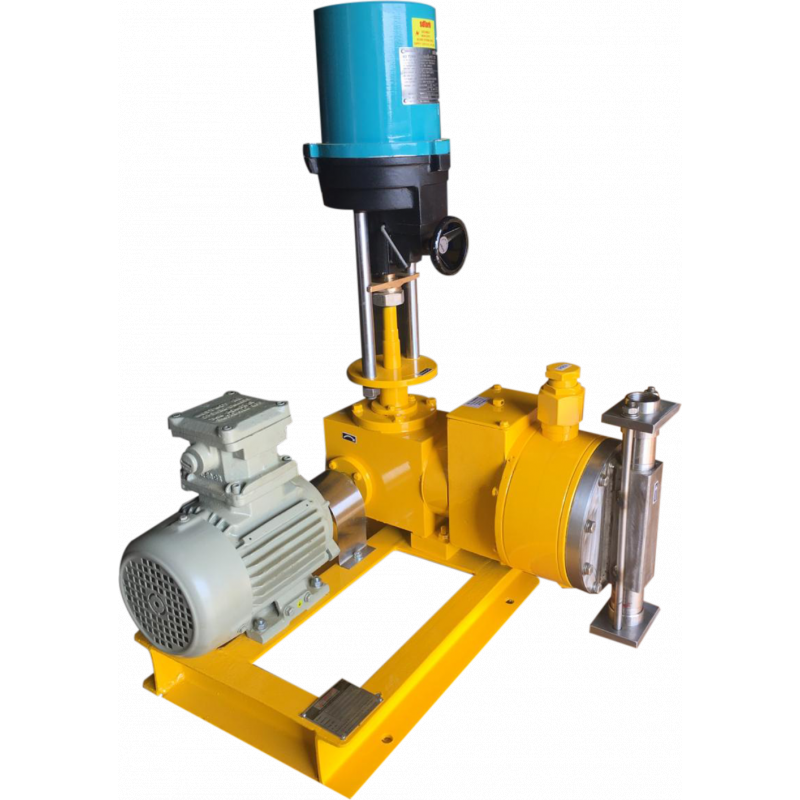

• Automatic capacity control via pneumatic or electric signal on demand
Application:
Versatile and suitable for any liquid including toxic and hazardous.
1) Simplex Hydraulic Diaphragm Pumps
2) Double Hydraulic Diaphragm Pumps
3) Duplex Hydraulic Diaphragm Pumps
Technical specification:
No | Model | Capacity | Max Pressure |
---|---|---|---|
1. | VHYD - O1 | 0 to 152 | 80 |
2. | VHYD - O2 | 0 to 761 | 99 |
3. | VHYD - O3 | 0 to 3000 | 250 |
4. | VHYD - O4 | 0 to 6000 | 300 |
